Automatic Aluminum Foil Container Making Machine H Type 80Ton

INTRODUCTION

The entire Automatic Aluminum Foil Container Making Machine H Type 80Ton adopts mechatronics design and the integrated electrical control for feeding and press adopts independent system design, which is safe and anti-interference. The touch screen is hung on the left side of the press, which is easy to operate. The stacker is installed on one side and work independently . The PLC program logic of the entire production line is perfectly matched, which greatly improves the production efficiency of the entire machine, making it more intelligent and humane.

FEATURE

1. This production line can work automatically. Worker operates the machine through electric control system and collect the stacked products conveniently.
2. Machine can be designed and manufactured according to customer’s requirment and customer’s target price.
3. Top Safety and long lifetime,high precision control of feeding step and speed.
4. Wet clutch pneumatic punch, long service life, low noise
5. The replacement of the mold is convenient and easy to change.

CONFIGURATION

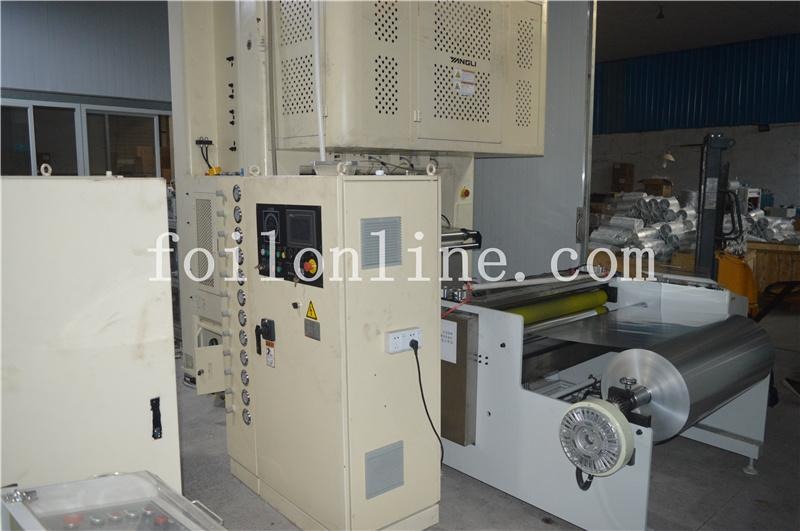

• Auto-lubricated Foil Feeder KNF-1200

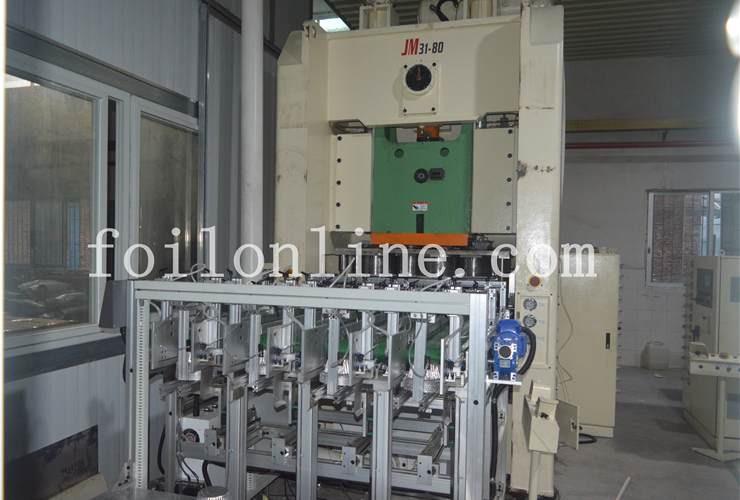

• H type Pneumatic Press
• Foil container mould 4 cavities or 5 cavities

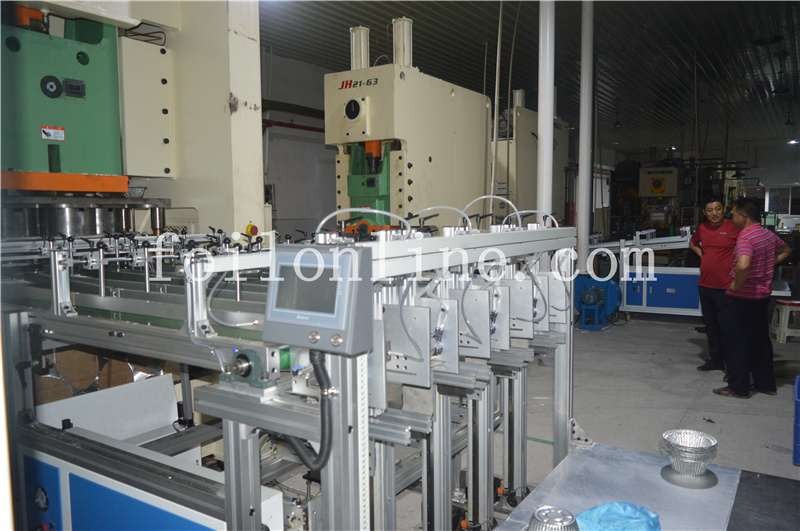

• Automatic Stacker
• System control touch screen
• Foil Scrap System
• Electric cabinet

SPECIFICATION

Automatic Aluminum Foil Container Making Machine H Type 80Ton

1. Raw material: Aluminum foil; Thickness: 0.030mm ~0.280mm; Alloy: 8011,8006,3003,3005; Temper O to H24;
2. Siemens, Mitsubishi, Schneider Inverter, Motor, PLC and 10inch Touch Screen control system;
3. Max. width of Aluminum foil: 1200mm;
4. Max. diameter of Aluminum foil: 1000mm;
5. Working speed: 40-68 times/min;
6. Compressed air is needed: 0.5- 0.8 Mpa, 0.4m3/min;
7. Install dimension: 6400*2600*3600mm;

Production Capacity

The capacity of production of konix aluminum foil container could be up to 300-350 pcs/min

Production Flow of Fully Automatic Aluminum Foil Container Making Machine

• The feeder feeds the material into the pneumatic press.
• The material goes into the mold and is pressed into shape.
• Products are made and blown out
• Products are collected by stacker

KONIX  45ton, 60/63Ton, 80ton, Common feeder, Embossing feeder ,Common collector and Auto Stacker, Automatic scrap system are AVAILABLE for your option.
